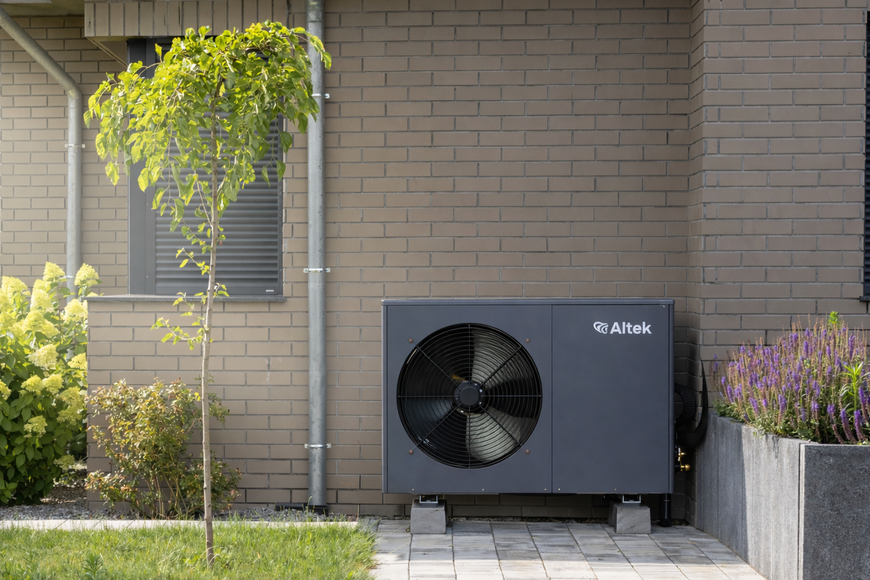

Altek Total 7 Mono EVI 220V Inverter Heat Pump

The Altek Total 7 Mono EVI 220V heat pump is a modern energy-efficient air-to-water system designed for heating, cooling, and domestic hot water (DHW). The unit supports combined operating modes: heating + DHW or cooling + DHW, ensuring a comfortable indoor climate all year round.

The system operates reliably within a wide temperature range from -30°C to +45°C, using advanced energy-efficient technologies.

The heat pump is built in a monoblock design, which significantly simplifies installation and connection. It can be integrated into an existing heating system as the main heat source, using an existing boiler as a backup.

Key Benefits of Altek Total 7 Mono EVI

✅ High energy efficiency (COP up to 4.45)
Ensures efficient heat production with low energy consumption.

✅ Inverter technology
Smooth power regulation improves efficiency and extends equipment lifespan.

✅ EVI technology
Stable operation even at low temperatures down to -30°C.

✅ 3-in-1 system: heating, cooling, DHW
One unit covers all household needs.

✅ Wi-Fi control
Remote monitoring and control via smartphone.

✅ Reliable components
Uses components from leading manufacturers (Panasonic, Carel).

✅ Compatibility with heating systems
Works with radiators, underfloor heating, and fan coils.

Heat Pump Design

The Altek Total 7 Mono EVI consists of key components:

heat exchanger
Panasonic inverter compressor
inverter-controlled fan
electronic expansion valve
Carel control system

The monoblock design simplifies installation and maintenance.

Working Principle

The heat pump operates by extracting heat from the surrounding air.

Air is supplied to the heat exchanger.
The refrigerant absorbs heat and evaporates.
The compressor increases the temperature.
Heat is transferred to the heating system or water.
The cycle repeats.

Technical Specifications Altek Total 7 Mono EVI 220V

🔹 System type: air-to-water (monoblock)
🔹 Power supply: 220–240 V / 1 phase / 50 Hz
🔹 Heating capacity: up to 7.5 kW
🔹 COP: up to 4.45
🔹 EER: 2.52
🔹 Rated current: 8.1 A
🔹 Max current: 11.69 A
🔹 Refrigerant: R410A
🔹 Water flow: 1296 L/h
🔹 Water temperature: up to 55°C
🔹 Noise level: 59 dB
🔹 Protection class: IPX4
🔹 Dimensions: 810 × 475 × 1110 mm
🔹 Weight: 88 kg

Conclusion

The Altek Total 7 Mono EVI 220V is a compact, reliable, and energy-efficient solution for residential use, providing stable performance, reduced heating costs, and year-round comfort.
